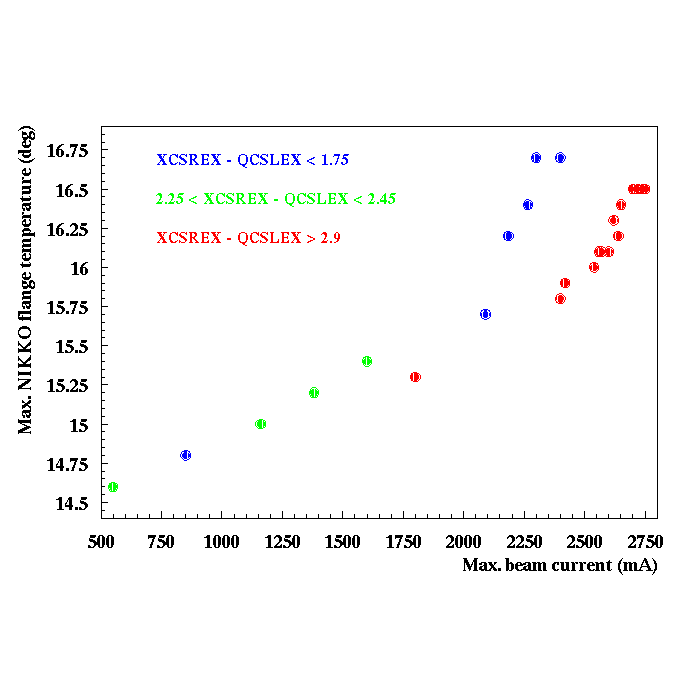

Dependence of max. backward flange temperature on total LER+HER
beam current. Different colors represent different ranges of horizontal
crossing angle (difference of up and down-stream Beam Position Monitor
readings).

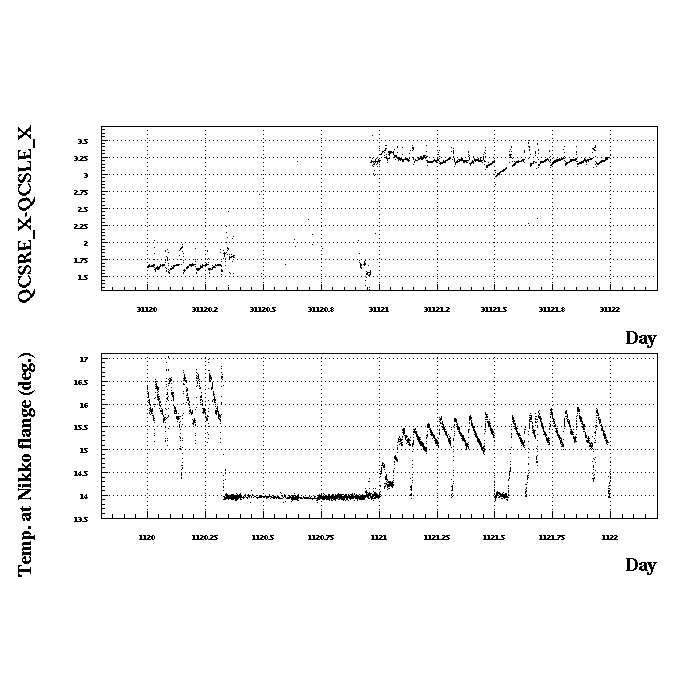

Jump in NIKKO flange temperature after the change of QCSRE_X-QCSLE_X
parameter on 2003/11/20.
Created: Mon Dec 22 17:31:32 JST 2003 by Samo Stanic
