• Irradiation and Annealing Log

• Software capeval_v29_1.c
• Gain measurement (20040630):
  CAP1_07, CAP1_08, CAP1_09, CAP1_11
• Non-averaged data cap1_gain.tgz, plot gain.gif
• Noise and leakage current plots

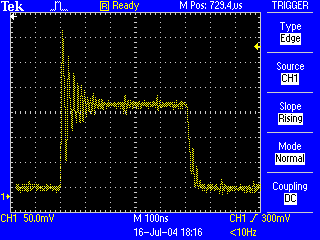

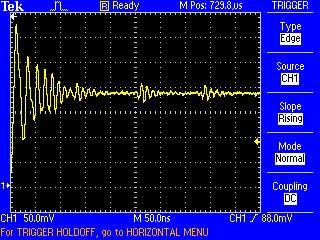

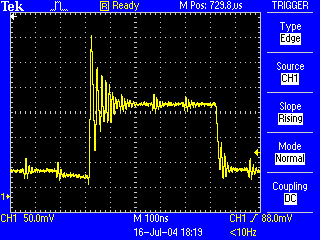

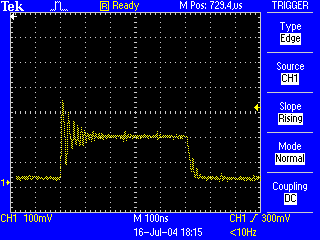

• CAP1 timing ( BMP, BMP, BMP, BMP)

Annealing Data

• CAP1-7, 0MRad, 20040628: CAP1_07 (broken)

• CAP1-8, 0MRad, 20040628: CAP1_08 (non irr)
• CAP1-8, 3MRad, 20040715: CAP1_08_3M (no an)
• CAP1-8, 3MRad, 20040816: CAP1_08_3M
• CAP1-8, 3MRad, 20040907: CAP1_08_3M
• CAP1-8, 3MRad, 20040914: CAP1_08_3M
• CAP1-8, 3MRad, 20040921: CAP1_08_3M
• CAP1-8, 3MRad, 20041001: CAP1_08_3M (80deg)
• CAP1-8, 3MRad, 20041029: CAP1_08_3M (room)
• CAP1-8, 3MRad, 20050304: CAP1_08_3M (room)
• CAP1-8, 3MRad, 20050627: CAP1_08_3M (room)

• CAP1-9, 0MRad, 20040628: CAP1_09 (non irr)
• CAP1-9, 20MRad, 20040816: CAP1_09_20M (no an)
• CAP1-9, 20MRad, 20040907: CAP1_09_20M
• CAP1-9, 20MRad, 20040914: CAP1_09_20M
• CAP1-9, 20MRad, 20040921: CAP1_09_20M
• CAP1-9, 20MRad, 20040929: CAP1_09_20M (80deg)
• CAP1-9, 20MRad, 20041029: CAP1_09_20M (room)
• CAP1-9, 20MRad, 20050304: CAP1_09_20M (room)
• CAP1-9, 20MRad, 20050627: CAP1_09_20M (room)

• CAP1-11, 0 n/cm², 20040628: CAP1_11 (non irr)
• CAP1-11, 10¹² n/cm², 200409xx: CAP1_11_e12 (no an)

Annealing Plots

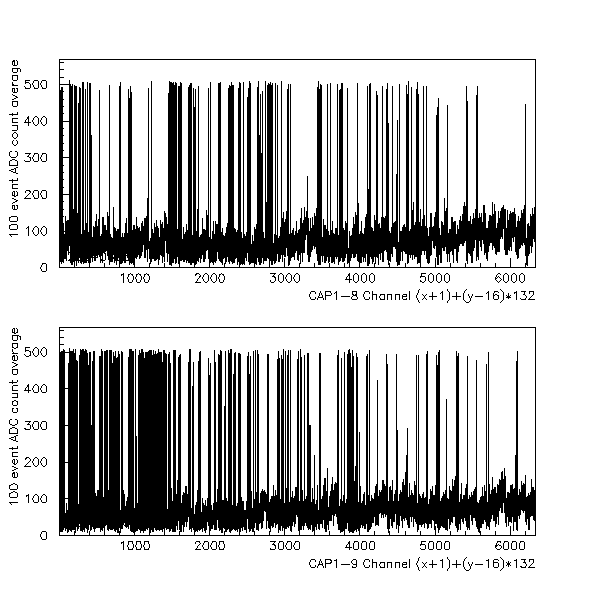

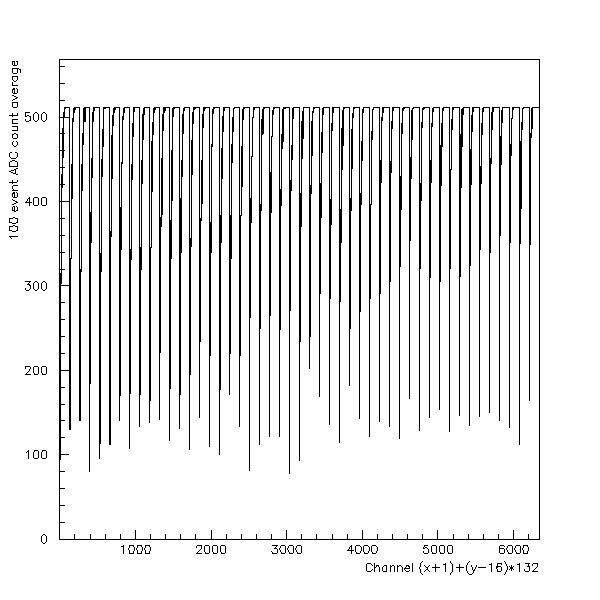

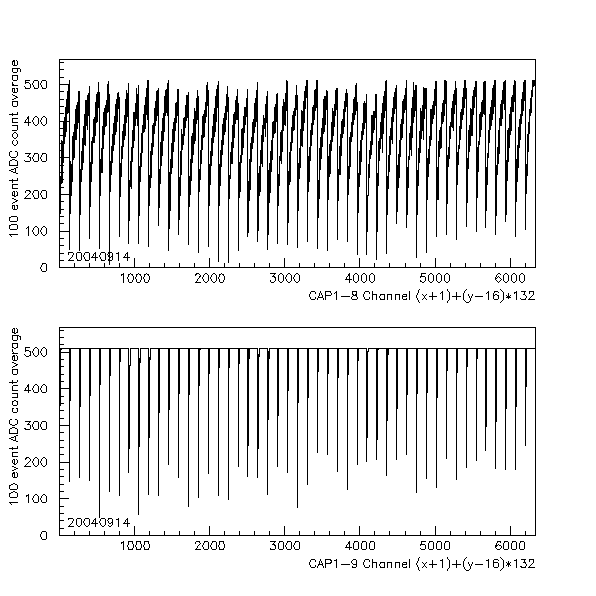

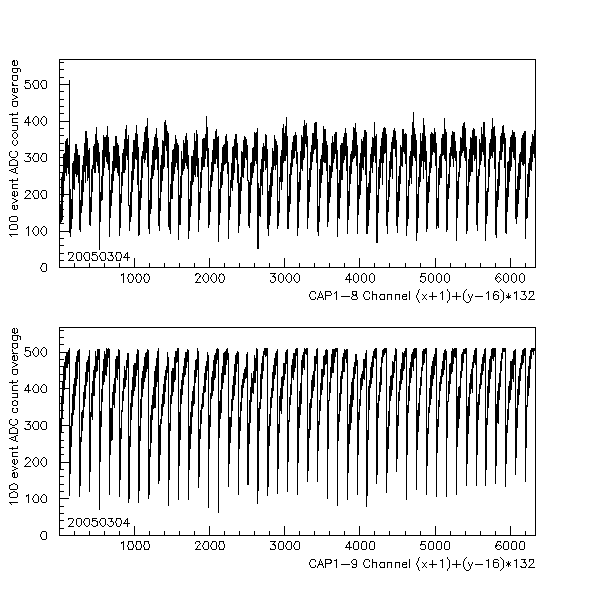

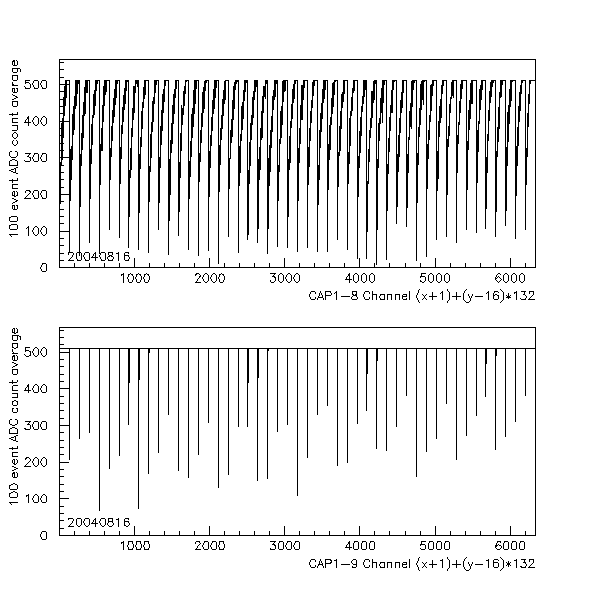

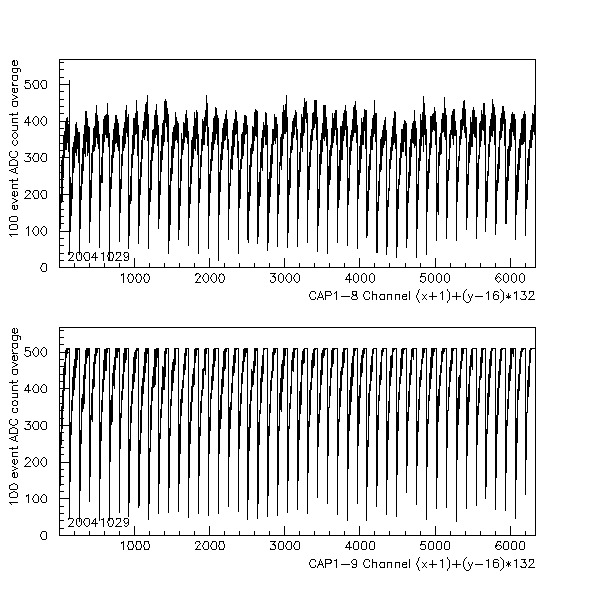

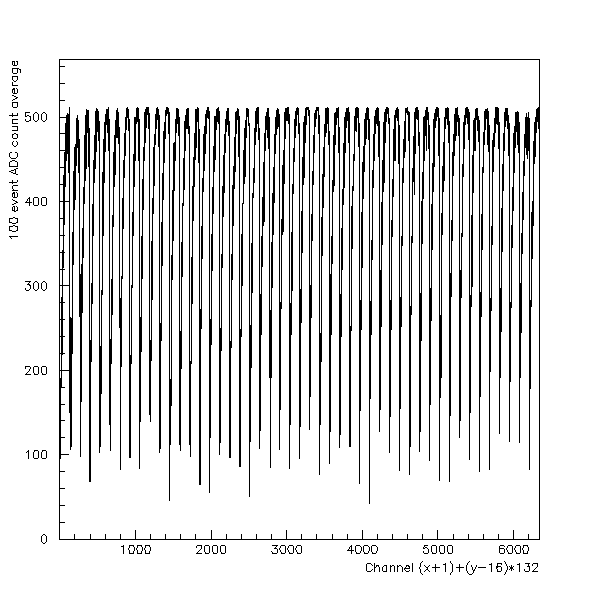

• Strip chart of average DAC counts over 100 events for 3M and 20M irradiated chips
  (20040628, 20040816, 20040914, 20041029, 20050304, 20050627, 20050627)

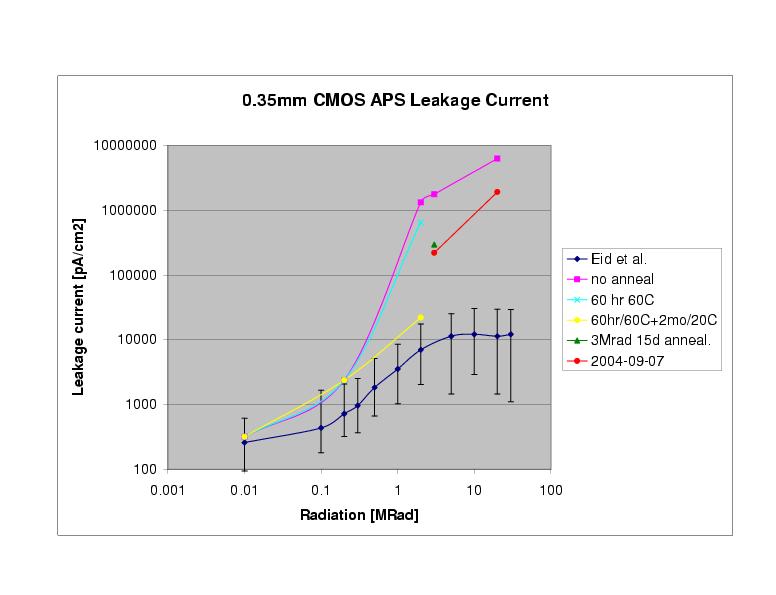

• Leakage current (Marlon) (jpg)
