Papers

• Development and implementation of a readout module for radiation
  sensing field effect transistors, IEEE TNS-00052-2006, accepted (pdf)

Belle RadFET Monitor System Upgrade (2005/07)

• RadFETR2 - Distr. Box connection scheme
• RadFETR2 - Startup delay circuit

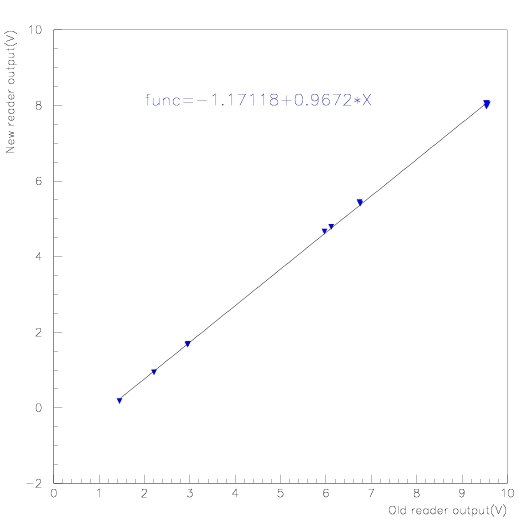

• Comparison old/new reader

RadFETR documentation

• Users Manual V1.0
• RadFETR2 Presentation
• RadFETR2 Schematics (old)
• RadFETR2 Firmware
• Link to UH
• Final BOM

BOM details

• 223-0332 CRG0805 220R 1%, 0.125W, 1%
• 223-0528 CRG0805 4K7 1%
• 223-0562 CRG0805 10K 1%
• 233-5235 ELC08D221E 220uH 0.6A 0.39Ohm
• 246-5415 8mm 7 seg. common cath. LED
• 264-4179 C1206C104K5RAC X7R 50V 0.1uF 10%
• 264-4416 C0805C104K5RAC X7R 50V 0.1uF 10%
• 298-881 IN4942GP 200V 1A
• 370-602 DG211CSE MAX SOIC16
• 371-071 LT LT1073CS8-5 SOIC8
• 399-0192 LASCAR SP100
• 411-4866 Red/Green LED VRPG3312X
• 435-7647 XC95144XL10TQC Mcells144
• 443-8601 IRU1010CY, 5.5V, 1A
• 631-317 LM317T STM TO220
• 648-422 NAT LM7805CT
• 648-438 NAT LM7812CT
• 655-543 FET ZVN3306A 60V 0.27A Eline
• 810-223 TEX UA7805CKC
• 857-963 TEX TL084CD
